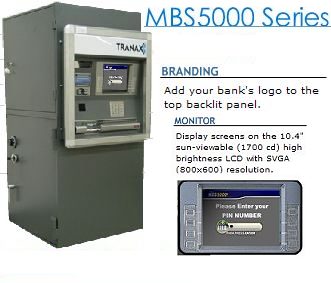

Tranax MBS5000
The feature-rich base model of the MBS5000 comes with a wide variety of standard features, many of which are options on other manufacturer's expensive ATMs. The MBS5000's cost of ownership is about 1/2 that of other manufacturer's. Standard features include a UL 291 Level 1 vault, an electronic lock, and a 10.4" sun-viewable LCD monitor that includes SVGA (800 x 600) resolution and customized graphics, increasing the marketing potential of the ATM.
Tranax MBS5000 outdoor atm with deposit module Tranax outdoor atm open

Standard Features

Monitor: 10.4" Sun-viewable (1750 cd/m2) High Brightness LCD with SVGA (800 x 600) resolution
8 menu keys
Advertising capability

Keypad: 16-key alphanumeric stainless steel keypad
Encrypting PIN Pad (EPP)
Triple DES compliant

Printer: Thermal paper
100 mm/sec print speed
Automatic paper loading and cutting
Paper out sensor

Cash Dispenser: Friction feed cash dispensing unit (7 notes per second)
Reject bin with key lock
2 cassettes of 2000 notes each
Near-end sensor
Double detection sensor
CDU option:
3rd cassette

Card Reader: Dip-type card reader

Security: UL 291 Level One ATM
Protected from harsh weather and vandalism
Mechanical combination lock
Lock option:
Electronic lock

56k modem for dial-up connection
Ethernet card for TCP/IP and LAN connectivity

Voice Guidance System

PC-based architecture
Hard Disk Drive (HDD) and CD-ROM Drive
Disk On Chip (DOC)
2 PCI expansion slots
4 serial ports
4 USB ports
Hardware option:
USB Memory Stick

Microsoft® Windows® XP
WOSA/XFS Compliant
Electronic Journal using Disk On Chip technology
Multi-language display
Software options:

Optional Accessories:
Security Camera
Envelope depository with printing capabilities

Dimension & Weight
Height: 57.5"
Width: 28"
Depth: 27.5"
Weight: 1200 lb.

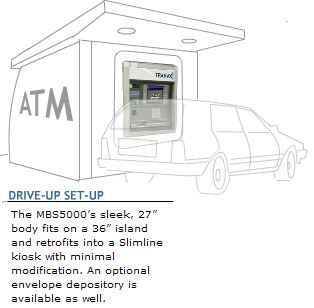

MBS 5000 drive-up ATM

Available right now on all versions of the MBS5000, is the optional Automated Print Depository that accepts envelope deposits and prints the transaction data right on the envelope. This new feature by Tranax offers an alternative to other brands of ATMs. The Automated Print Depository gives more financial institutions the option of offering to their customers the added convenience of self-service deposits. The MBS 5000 also provides the option of accepting deposits at drive-up ATM locations. ATM Models are also customizable to add rear vault access capabilities. Tranax can also build you a drive-up MBS5000 with side vault access

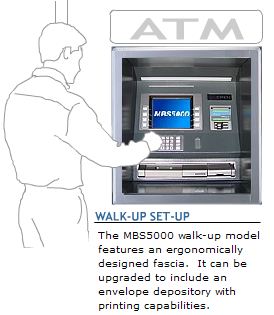

MBS 5000 by Tranax walk up configuration

Tranax ATM outdoor cash dispenser
download MBS5000 brochure
